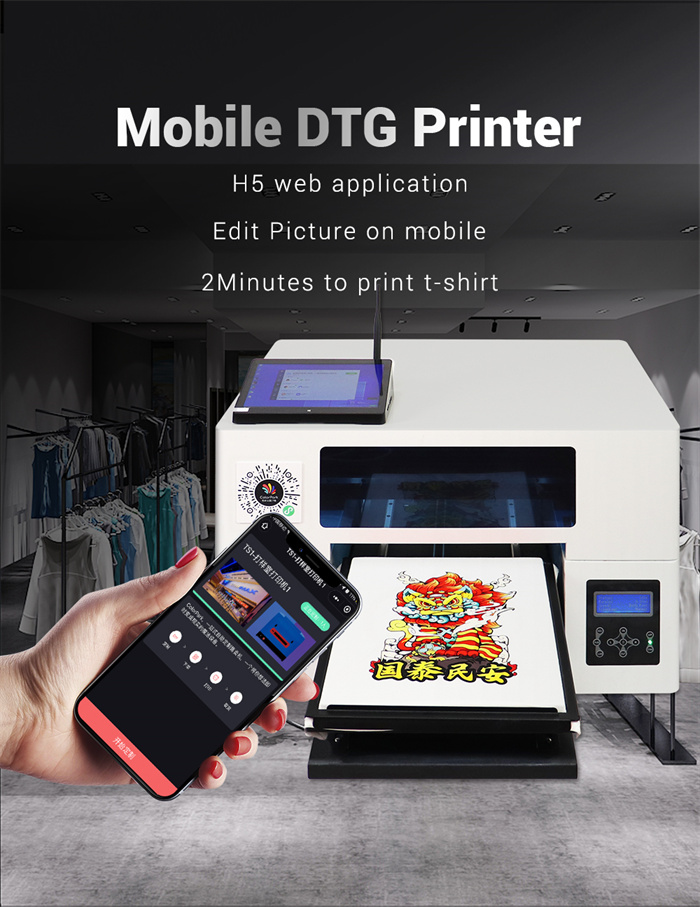

TS1 T-shirt Printer

Equipment Name:Smart T-Shirt Scan-to-Print Printer
Print Size:28 × 38 cm
Applicable Materials:T-shirts, hoodies, polo shirts, and other textiles
Printhead Configuration:EPSON-F1080 single printhead
Ink Colors:CMYKW (including white ink, 5 colors)
Printing Speed:8-pass / 12-pass / 16-pass
Media Height:0–5 cm
Lifting Function:Infrared auto-lowering
Device Weight:Net weight 56 kg
Device Dimensions:760 × 585 × 505 mm
Voltage:220V / 110V universal
Power Consumption:40W / 150W
Operating Environment:Indoor; temperature 20–28°C; humidity 40%–60%
Printing Software:Hansen integrated software + client + H5 customization
File Formats:JPG, PNG, TIF
Supported Operating Systems:XP / Windows 7 / Windows 10 / Windows 11
Special Features:Cloud printing, H5 scan-to-order, automatic ink supply, supports remote cleaning; requires heat press for curing (approx. 10 seconds of pressing)
